Components

Components for an Conversion-Kit

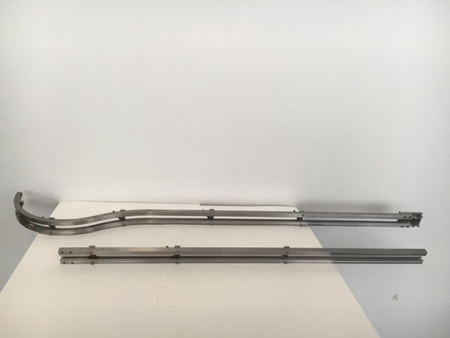

Part No.: A.13.012 / A.13.013
Product name: Chute for Ringpull closures
Description: For caps transport from the hopper to the cap applicator.
Manufactured individuell for each capper/ project.

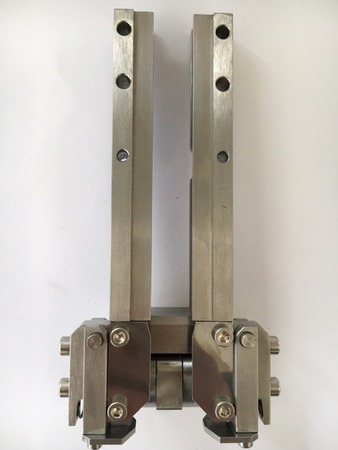

Part No.: A.10.156
Product name: Cap applicator with progressive spring
Description: To apply 26,5mm Ringpull closures on bottle mouthes max. 30.000 bph.

Part No.: A.10.157
Product name: Cap applicator with progressive spring and air support
Description: To apply 26,5mm Ringpull closures on bottle mouthes max. 60.000 bph.

Part No.: A.10.158
Product name: Cap applicator with progressive spring and bottle-burst kit
Description: To apply 26,5mm Ringpull closures on bottle mouthes inc. pneumatic parts for reject bottles after burst without caps (only hardware, no control unit) max. 30.000 bph.

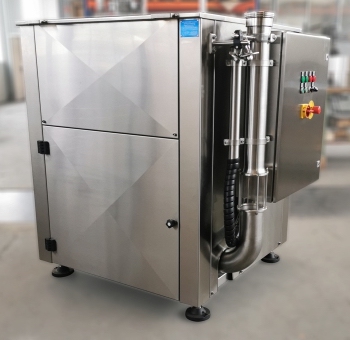

Part No.: 9928
Product name: Pneumatic elevator for approx. 45.000 closures
Description: Transport system for bottle-closures max. 50m horizontal

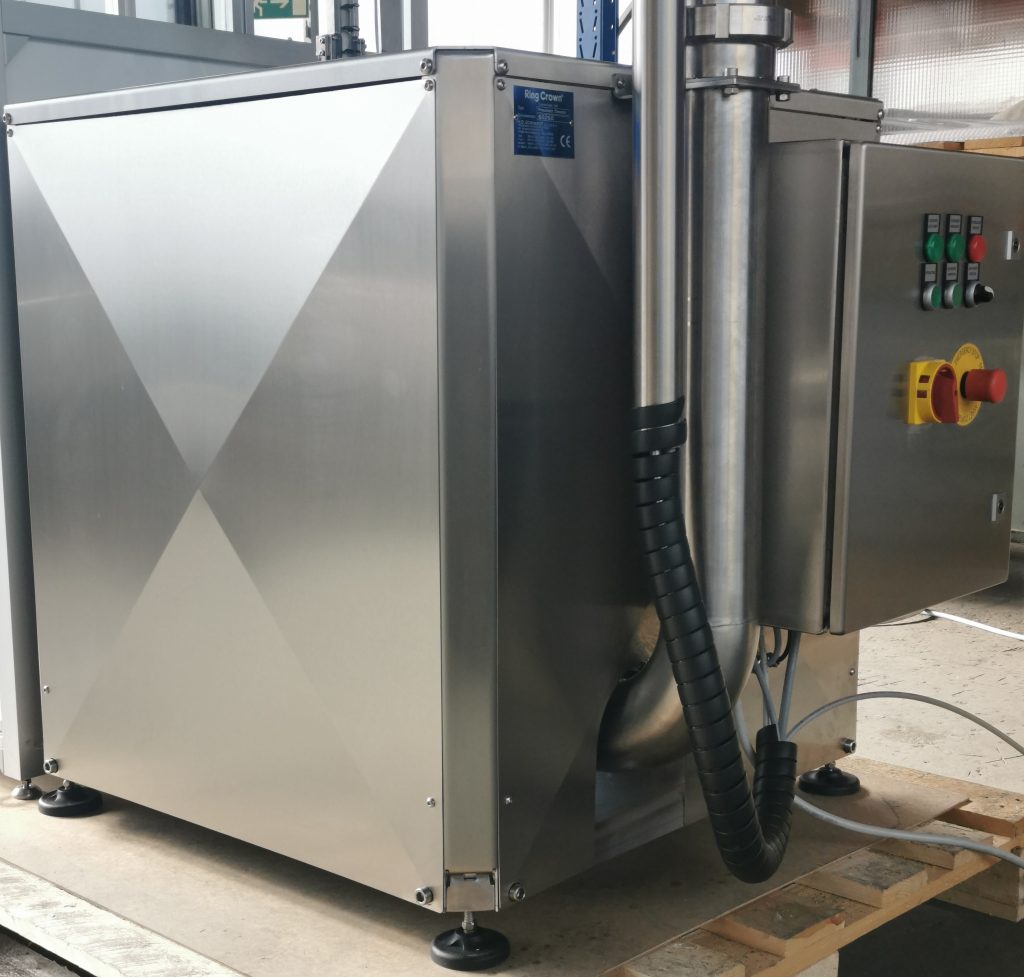

Part No.: 6628
Product name: Pneumatic elevator for approx. 15.000 closures
Description: Transport system for bottle-closures

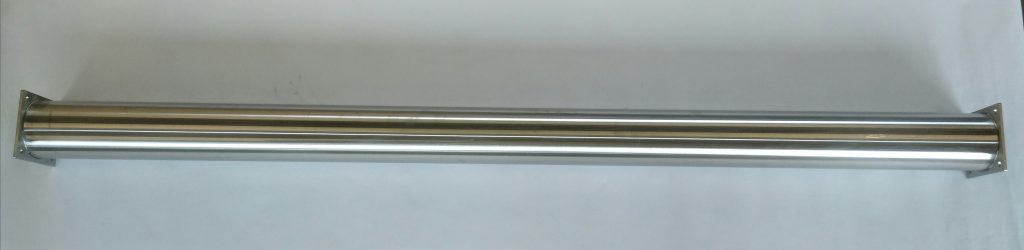

Part No.: PT.1950
Product name: Pneumatic tube
Description: Connection tube between pneumatic elevator and cyclone.
Manufactured individuell for each capper/ project.

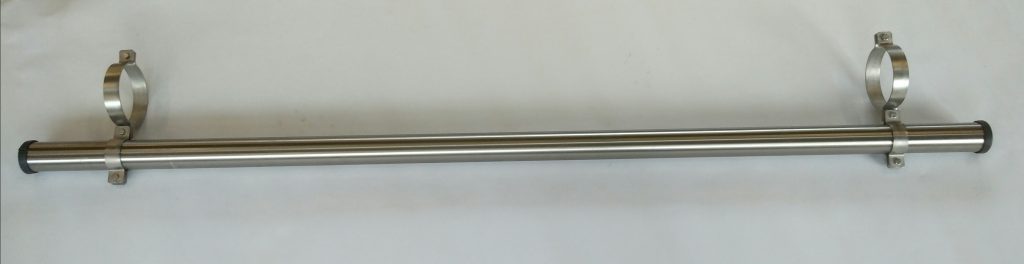

Part No.: KK.1950
Product name: Cable channel
Description: For assembling on pneumatic tube.
Manufactured individuell for each capper/ project.

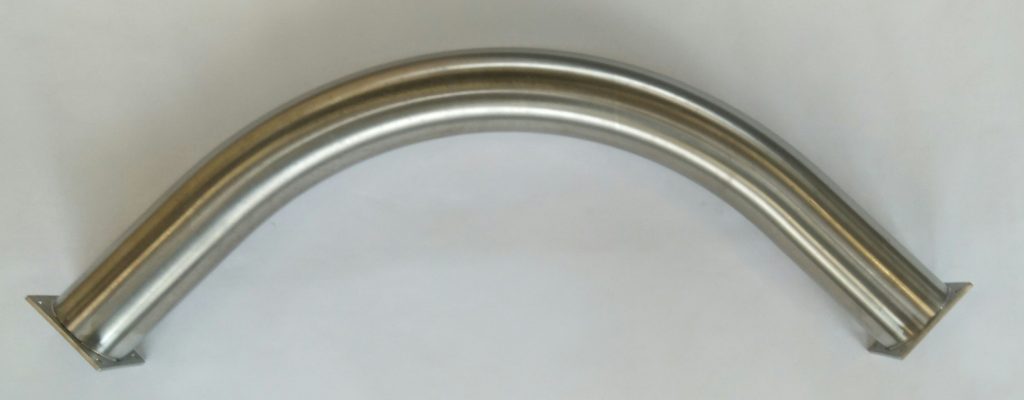

Part No.: RB.500
Product name: Bend ø104 mm, 500/700 mm
Description: Connection between vertical tubes and horizontal tubes.

Part No.: H.01.130
Product name: Pneumatic gate for Ringpull / Crowncork
Description: In combination with 9928 pneumatic elevator, to be able to transport Ringpull closures and Crowncork closures with same system.

Part No.: L.60E
Product name: Wagon
Description: With separations, to store and clean the closing heads.

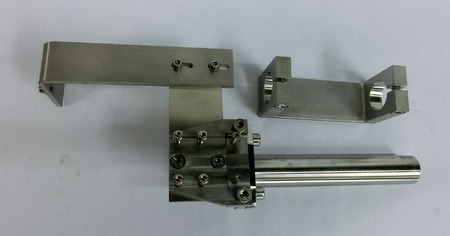

Part No.: A.13.056
Product name: Arrangement for quick change of applicator
Description: Very flexible holder for cap applier with adjustability from 0 – 50 mm

Part No.: St43
Product name: Electric control mounted onto the hopper, with minipanel on/off with flexible cable
Description: Electric control for hopper, without pneumatic Elevator control, including operating device.

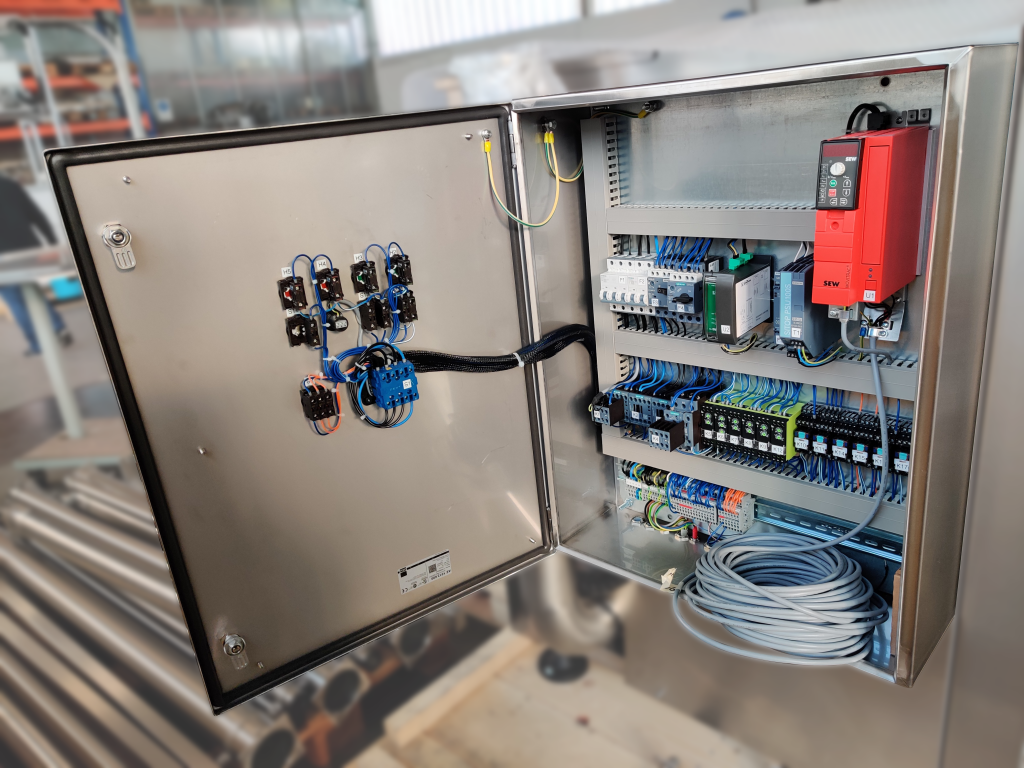

Part No.: St44
Product name: Electric control with frequency inverter, with P.E. control
Description: For automatic feeding, speed control by frequency inverter

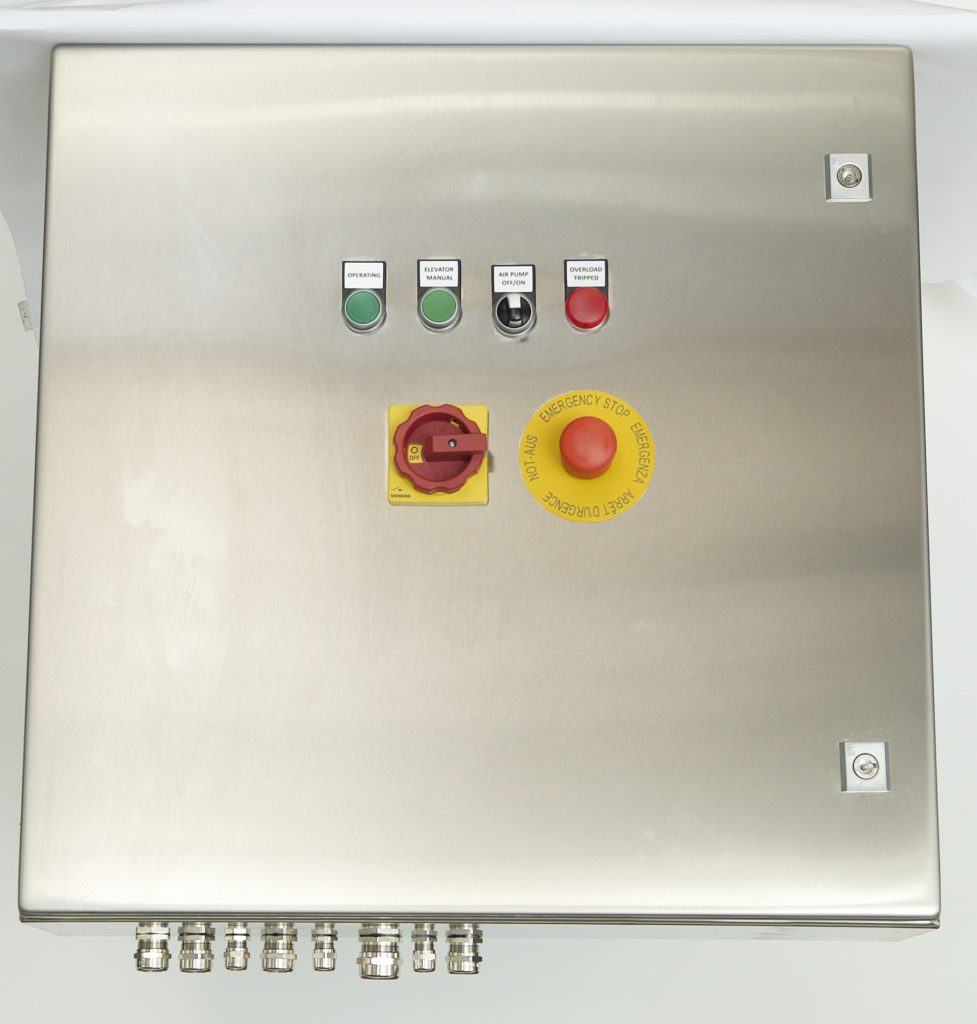

Part No.: St45
Product name: Electric control for hopper without frequency inverter, with P.E.control
Description: For automatic feeding.

Part No.: KL303
Product name: Terminal box
Description: For connection of main power supply

Part No.: D-0,3W
Product name: Dosing device for feeding with pneumatic elevator
Description: For dosing ringpull caps before being assorted

Part No.: S.10.003
Product name: Consol for hopper
Description: For the attachment of the hopper on the top plate of the crown cork capping machine.
Manufactured individuell for each capper/ project.

Part No.: S.10.003.1
Product name: Consol for hopper
Description: For the attachment of the hopper on the podium over the crown cork capping machine.
Manufactured individuell for each capper/ project.
